What are multi-agent systems? How AI agents work together

Introduction

As AI workflows grow more complex, a single agent can quickly become the bottleneck. Research, planning, execution, validation, and tool use often compete for the same context and attention.

Multi-agent systems spread those responsibilities across specialized agents that can work independently while staying coordinated. This guide explores how multi-agent AI works, how agent orchestration keeps the system aligned, and where multi-agent architectures are most useful.

What are multi-agent systems?

A multi-agent system (MAS) is a system where multiple autonomous or semi-autonomous agents work within the same environment and coordinate toward individual or shared goals. Each agent has some ability to make decisions, act within its scope, and interact with other agents.

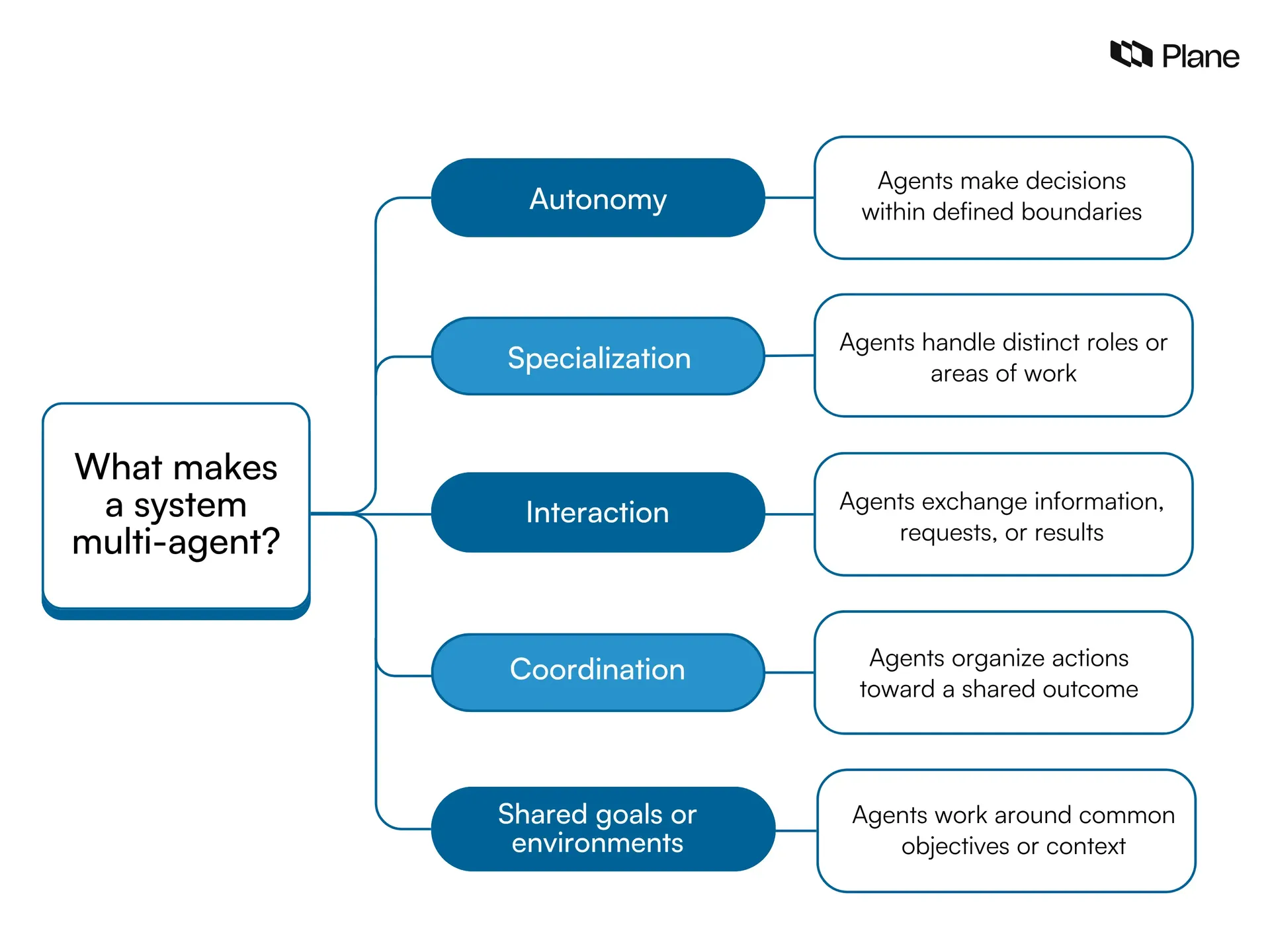

What makes a system “multi-agent”?

A multi-agent system usually combines five characteristics:

• Autonomy: Agents can make decisions within defined boundaries.
• Specialization: Different agents can handle different roles, tools, or areas of expertise.
• Interaction: Agents exchange information, requests, or results.
• Coordination: Their actions are organized so the overall workflow stays aligned.
• Shared environment or goals: Agents operate around common data, systems, or objectives.

In multi-agent systems in AI, agents may cooperate on the same task, delegate work, validate one another’s outputs, or sometimes compete to produce the strongest result.

A simple multi-agent system example

Take a software feature request. One agent can break the request into tasks, another can generate the implementation, and a third can review the output against the original requirements.

Each agent handles a specific part of the workflow, while the system coordinates how work moves between them. That division of responsibility is what gives AI multi-agent systems their value.

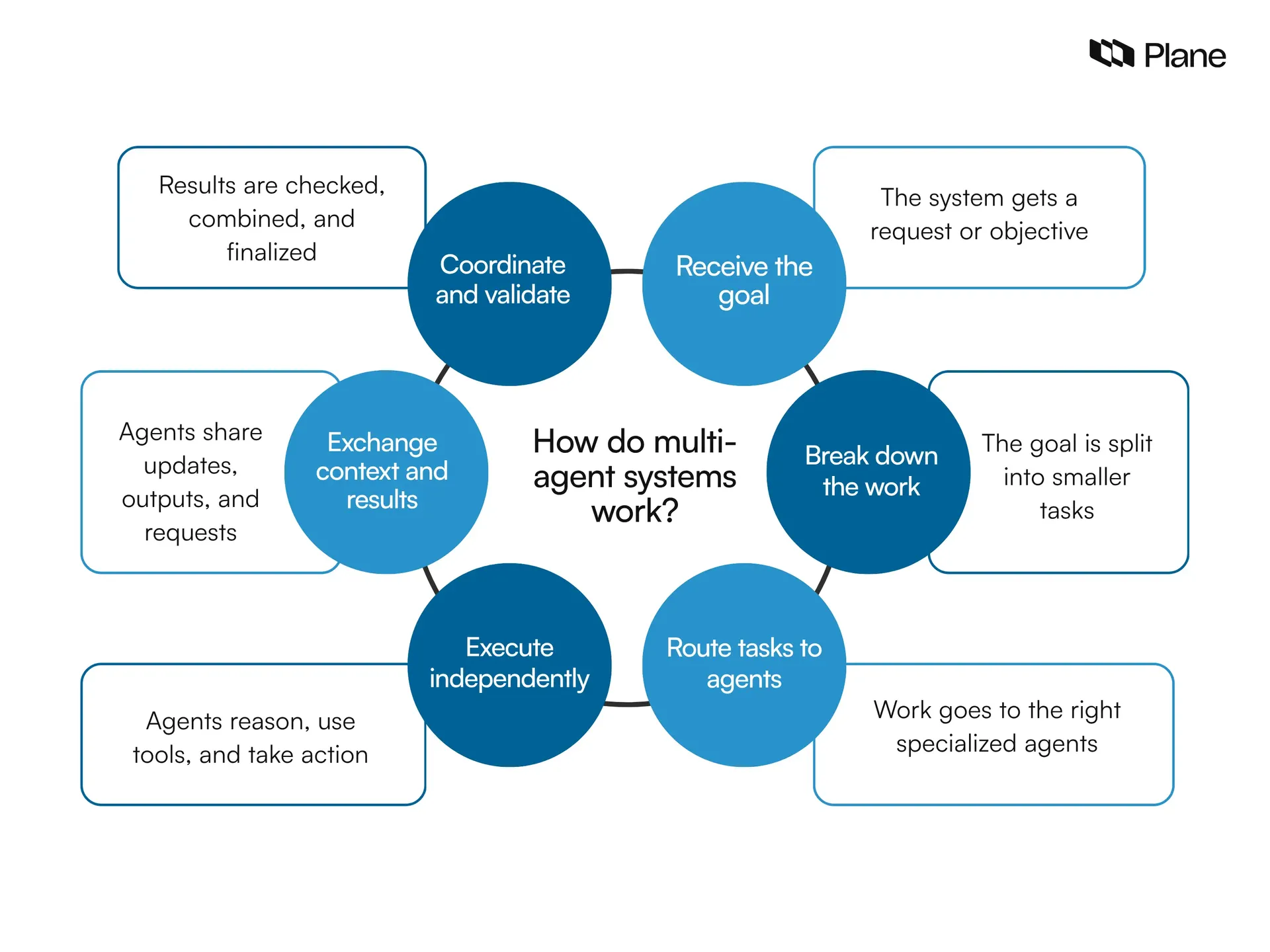

How do multi-agent systems work?

A multi-agent system turns one larger objective into a coordinated workflow across several agents. Each agent handles a defined part of the work, while communication and orchestration keep the overall process moving toward the same outcome.

1. A goal enters the system

The process starts with a request, objective, or problem. This could be anything from researching a market to resolving a software bug.

2. The work is broken into smaller tasks

The system identifies the steps required to complete the goal. Depending on the architecture, this may be handled by a planner agent, an orchestrator, or predefined workflow logic.

3. Tasks are routed to the right agents

Each task is assigned to an agent based on its role, tools, context, or expertise. This is where agent orchestration becomes important, especially when several tasks need to run in sequence or in parallel.

4. Agents execute their responsibilities

Agents reason within their assigned scope and use the tools or data available to them. Some may search for information, call APIs, write code, analyze results, or update external systems.

5. Agents exchange context and results

As work progresses, agents pass information to one another. A later agent may need an earlier agent’s output, while another may request clarification, additional data, or a retry.

6. Outputs are coordinated and validated

The system brings the individual results together and checks whether the original goal has been met. Validation may come from another agent, an orchestrator, predefined rules, or a human reviewer.

Example: A multi-agent software development workflow

Consider a feature request moving through four specialized agents:

1. Planning agent: Interprets the request and breaks it into implementation tasks.
2. Coding agent: Writes or modifies the required code.
3. Testing agent: Runs tests and identifies failures or regressions.
4. Review agent: Checks the final output against the original requirements and flags anything that still needs attention.

If testing reveals a problem, the task can return to the coding agent before review continues. This feedback loop is a common pattern in AI multi-agent systems, where the quality of the final result depends on both individual agent performance and how well the handoffs are coordinated.

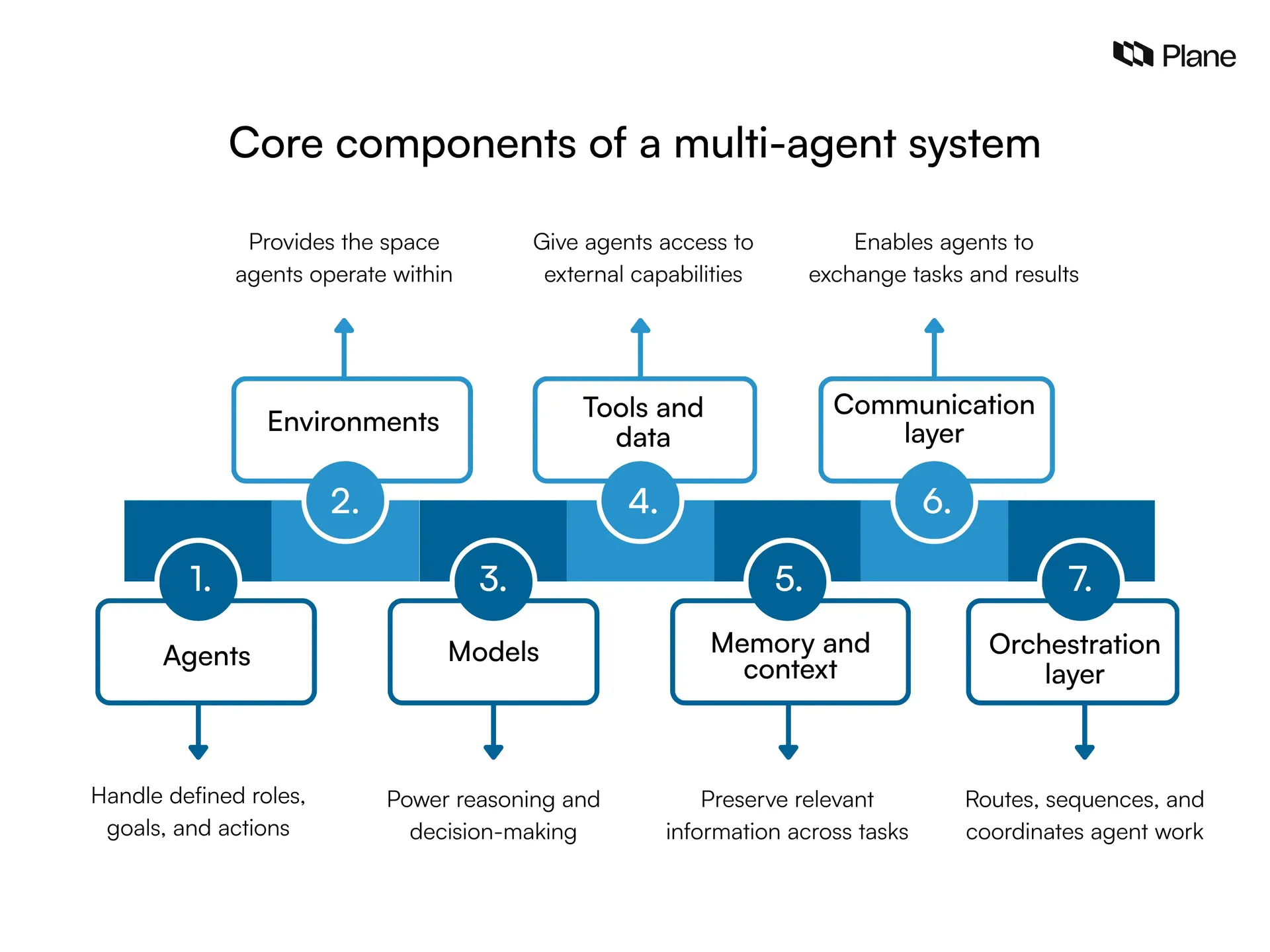

What are the core components of a multi-agent system?

A multi-agent system depends on more than the agents themselves. It also needs the surrounding infrastructure that gives agents context, access, communication paths, and a way to coordinate their work.

1. Agents

Agents are the individual actors in the system. Each one typically has a defined role, goal, set of instructions, and level of autonomy.

2. Environment

The environment is the space in which agents operate. It can be digital, physical, or simulated, depending on the use case.

3. Models

Models provide the reasoning and decision-making capability behind an agent. Different agents in the same system can use different models when their responsibilities require different strengths.

4. Tools and data

Agents often need access to external resources such as APIs, databases, applications, search systems, or code execution environments. These resources allow agents to move beyond reasoning and take useful actions.

5. Memory and context

Memory helps agents retain relevant information across steps, while shared context allows different agents to work from the same inputs, decisions, or previous outputs.

6. Communication layer

The communication layer allows agents to exchange tasks, requests, context, status updates, and results. It supports both direct agent-to-agent communication and coordination through shared systems or state.

7. Orchestration layer

The orchestration layer controls how work moves through the system. It can route tasks, sequence actions, trigger parallel work, manage handoffs, and decide when another agent or a human needs to step in.

Together, these components form the agent architecture that determines how effectively specialized agents can operate as one coordinated system.

Single-agent vs. multi-agent systems

• A single-agent system handles a workflow through one agent that maintains the relevant context, reasons about the task, uses available tools, and produces the output. This works well when the task is focused, and most steps depend on the same information.
• A multi-agent system divides the workflow across several specialized agents. Each agent can maintain its own context, tools, and responsibilities, while an orchestration or communication layer coordinates how work moves between them. This can be useful for larger workflows that benefit from specialization or parallel execution, but it also adds more handoffs, dependencies, and operational overhead.

Choosing between single-agent vs. multi-agent systems comes down to the shape of the problem. An AI multi-agent system can handle responsibilities that genuinely benefit from separation, while simpler workflows often gain more from keeping context and execution together.

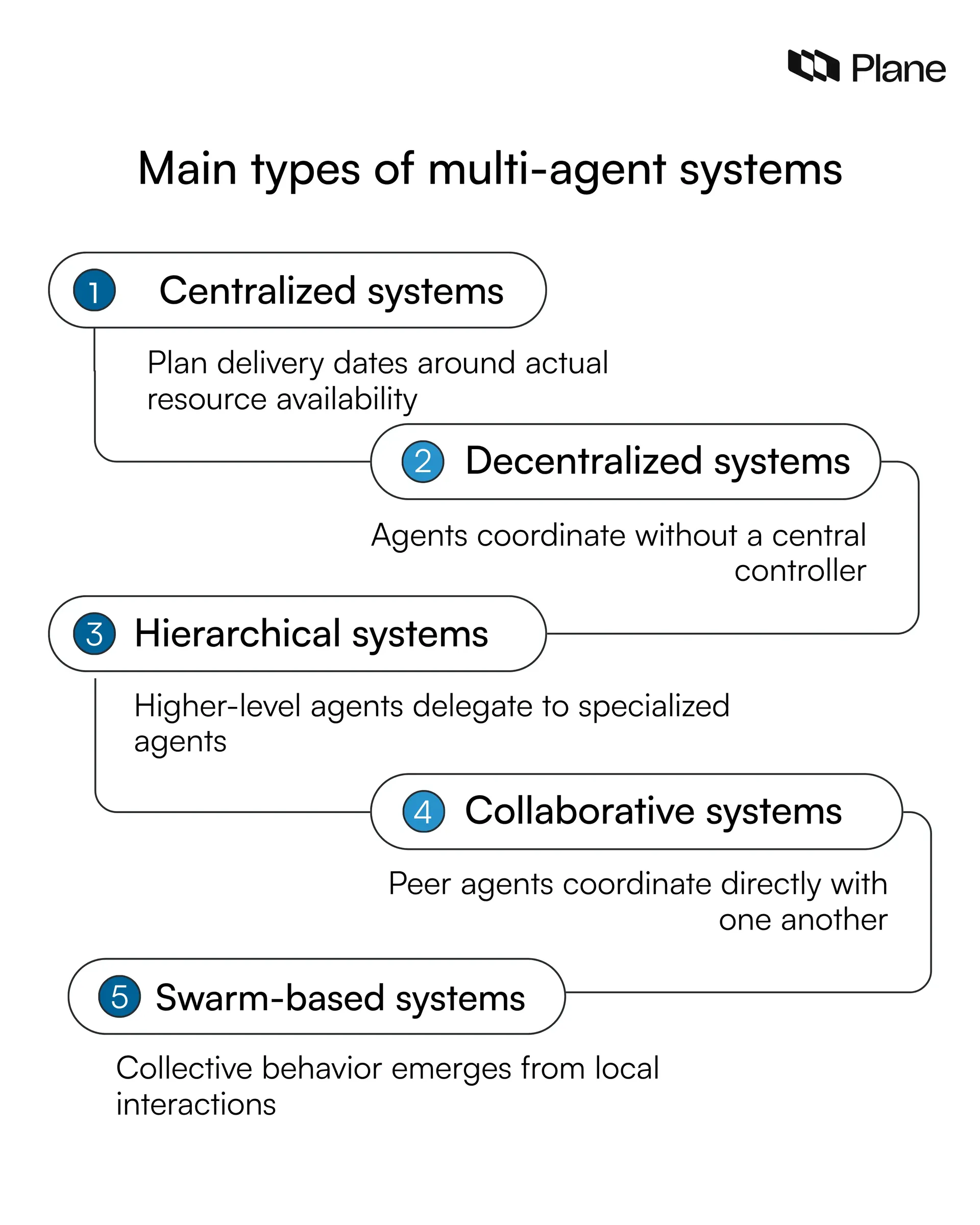

What are the main types of multi-agent systems?

Multi-agent systems can be organized in different ways depending on how decisions are made, how agents communicate, and how much control is centralized. The architecture shapes how work is delegated, how failures propagate, and how easily the system can scale.

1. Centralized systems

A central supervisor or orchestrator assigns tasks, tracks progress, and coordinates the other agents. This structure is easier to control and observe, especially when workflows need clear sequencing or approval points.

2. Decentralized systems

Agents communicate and make decisions without depending on one central controller. This can reduce reliance on a single coordination point, but it also makes consistency, conflict resolution, and system-wide visibility harder to manage.

3. Hierarchical systems

Agents are organized into levels. Higher-level agents handle planning or delegation, while lower-level agents carry out more specialized tasks. This structure is useful when a complex goal can be broken into layers of responsibility.

4. Collaborative or peer-to-peer systems

Agents operate at a similar level and coordinate directly with one another. They may share information, divide work dynamically, or request help from other agents based on the task at hand.

5. Swarm-based systems

Swarm-based systems rely on many agents following local rules and reacting to nearby information or environmental changes. Coordinated behavior emerges from those interactions rather than from a single orchestrator.

Multi-agent systems can also be cooperative, competitive, or mixed. Cooperative agents work toward shared outcomes, competitive agents pursue goals that may conflict, and mixed systems combine both behaviors depending on the context.

How do agents communicate and coordinate?

Communication is what allows independent AI agents to operate as a system. Agents need ways to assign work, exchange context, report progress, and react when another agent changes the course of a workflow.

1. Task delegation and routing

A supervisor, router, or another agent can determine which agent is best suited to handle a task. Routing decisions may depend on the agent’s role, available tools, permissions, or current context.

2. Sequential handoffs

Some workflows move through agents in a defined order. One agent completes its task and passes the relevant output to the next, such as a coding agent handing implementation details to a testing agent.

3. Parallel execution

Independent tasks can be assigned to several agents at the same time. A research workflow, for example, could send different questions to multiple agents and combine their findings later.

4. Shared memory and context

Agents often need access to common information such as the original request, previous decisions, task status, or intermediate results. Shared context helps maintain continuity as work moves across the system.

5. Direct agent-to-agent communication

Agents can communicate directly to delegate tasks, request information, clarify an output, or return results. This becomes especially useful when agents need to collaborate dynamically rather than follow a fixed sequence.

6. Feedback and validation loops

One agent can evaluate another agent’s output and send it back for revision when needed. These loops are common in workflows where quality checks, testing, or verification are important.

7. Coordination through a shared environment

Agents can also coordinate indirectly by reading and updating shared data, task queues, applications, or other system state. Changes made by one agent can then influence what another agent does next.

Agent interoperability and communication protocols

• As agentic AI systems span different frameworks and applications, standardized protocols can reduce the need for custom integrations between every participant.
• The Agent2Agent (A2A) Protocol focuses on communication between independent agents. It provides a common way for agents to discover capabilities, delegate tasks, exchange information, and collaborate across frameworks or vendors. A2A 1.0 is an open standard under the Agentic AI Foundation.
• The Model Context Protocol (MCP) addresses a different connection point. It standardizes how AI applications connect to tools, data, and contextual resources. In simple terms, A2A helps agents work with other agents, while MCP helps agents and AI applications work with external capabilities and context. The two can therefore complement each other within a broader agent architecture.

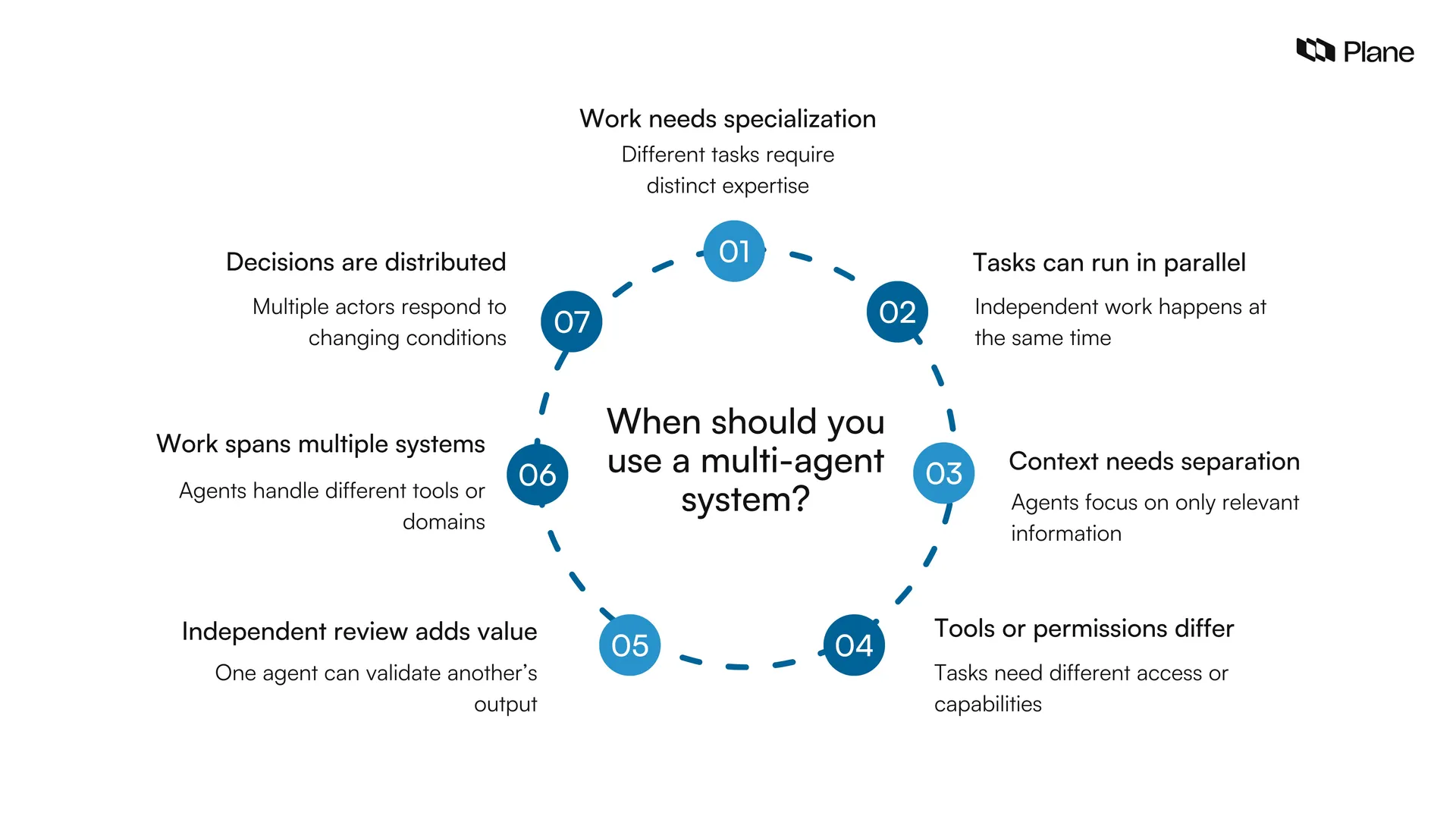

When should you use a multi-agent system?

A multi-agent system becomes useful when the workflow has clear boundaries between responsibilities and those responsibilities benefit from being handled independently. The decision should come from the shape of the work, since every additional agent introduces more communication, handoffs, and system behavior to manage.

1. Tasks require different areas of specialization

Separate agents can be designed around distinct roles, such as research, planning, coding, testing, or review. Each agent can receive instructions and context suited to that responsibility.

2. Independent work can happen in parallel

When subtasks have few dependencies, several agents can work at the same time. This is useful for research, analysis, testing, or other workflows where results can later be combined.

3. Context needs to stay focused

Large workflows can fill one agent's context with information from unrelated subtasks. Dividing the work allows each agent to operate with the context most relevant to its responsibility.

4. Tasks require different tools, models, or permissions

Some parts of a workflow may need code execution, while others need database access or a particular model capability. Specialized agents allow those resources and permissions to be assigned more precisely.

5. Independent validation adds value

One agent can produce an output while another reviews, tests, or verifies it. This separation is useful when a workflow benefits from explicit quality checks before proceeding.

6. Work spans multiple systems or domains

Complex workflows may cross engineering tools, business applications, databases, or external services. Different agents can take responsibility for specific systems while coordinating the overall process.

7. Decision-making is naturally distributed

Some problems involve several actors responding independently to changing information, such as autonomous systems, logistics networks, or distributed simulations. A multi-agent system architecture can reflect that structure directly.

When is a single agent enough?

A single agent is often the better fit for focused workflows where tasks share the same context, follow a mostly sequential path, and rely on a common set of tools.

For example, summarizing a document, updating a structured record, or completing a short research task may work efficiently within one reasoning loop. Introducing several autonomous agents in these cases adds routing and communication overhead without creating a meaningful advantage. The practical approach is to introduce multiple agents when specialization, parallelism, context separation, or distributed control solves a clear problem in the workflow.

What are the benefits of multi-agent systems?

The main advantage of multi-agent systems is that they distribute work across agents with distinct responsibilities. This can make complex workflows easier to scale, adapt, and manage when the underlying problem benefits from separation.

1. Specialized problem-solving

Different agents can be designed around different roles, domains, tools, or model capabilities. A research agent, for example, can focus on gathering evidence while a review agent evaluates the quality of the result.

2. Parallel execution

Independent tasks can run at the same time instead of waiting for one agent to complete each step sequentially. This is useful for workflows such as research, testing, or analysis where several branches can progress in parallel.

3. Scalability

As workflows grow, new responsibilities can be assigned to additional specialized agents. This gives AI multi-agent systems a modular way to expand without forcing one agent to handle every task.

4. Flexibility and adaptability

Agents can respond to changes within their own scope and adjust their actions based on new information, tool outputs, or messages from other agents. This makes multi-agent workflows useful in dynamic environments.

5. Resilience and fault isolation

When responsibilities are clearly separated, a failure in one agent or task can sometimes be isolated without stopping the entire workflow. The system can retry the task, route it elsewhere, or escalate it for review.

6. Modular system design

Individual agents can be developed, tested, updated, or replaced separately. This modularity can make a complex agent architecture easier to evolve over time, especially when different parts of the system change at different rates.

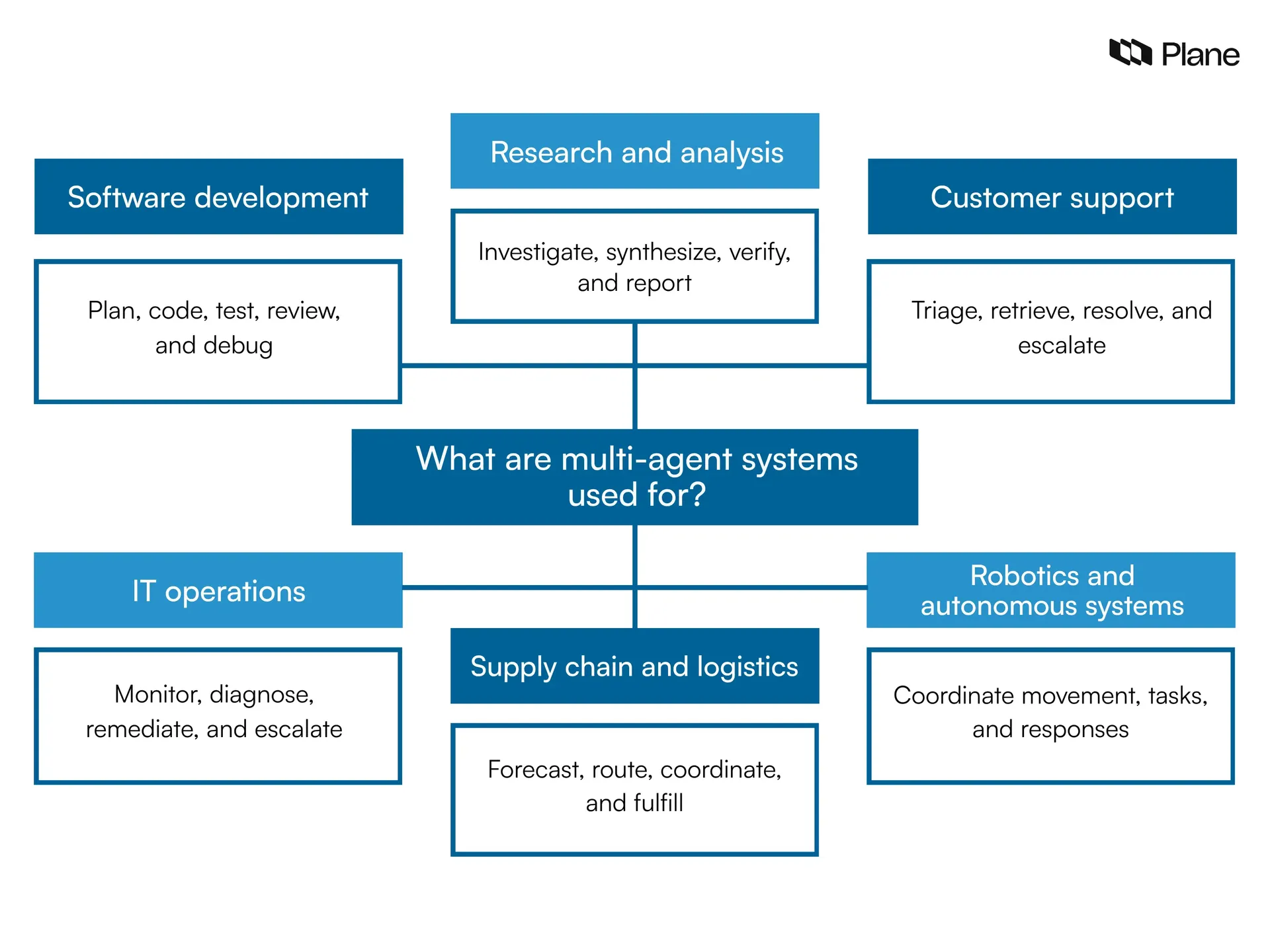

What are multi-agent systems used for?

Multi-agent systems are useful when a workflow involves several distinct responsibilities that can be handled by specialized agents. The strongest use cases usually involve some mix of parallel work, handoffs, validation, or distributed decision-making.

1. Software development

A software workflow can assign planning, implementation, testing, review, and debugging to different agents. A planning agent may break a feature into tasks, a coding agent handles implementation, and testing or review agents check the result before the workflow moves forward.

2. Research and analysis

Several agents can investigate different questions in parallel, while another agent synthesizes the findings and a separate reviewer checks sources, gaps, or inconsistencies. This is especially useful when the research problem spans multiple domains.

3. Customer support

A support workflow can use one agent for triage, another for knowledge retrieval, another for resolution, and a final agent or human for escalation. The system can route each case based on issue type, urgency, or confidence.

4. IT operations and incident response

Agents can monitor systems, investigate alerts, gather logs, suggest remediation steps, and escalate incidents when predefined conditions are met. Different agents can focus on diagnosis, response, and communication while sharing the same incident context.

5. Supply chain and logistics

Multi-agent systems can coordinate forecasting, inventory checks, routing, supplier information, and fulfillment decisions. Each agent can work within a specific operational area while contributing to the broader supply chain workflow.

6. Robotics and autonomous systems

In robotics, multiple autonomous agents can coordinate movement, task allocation, and responses to environmental changes. Examples include warehouse robots, autonomous vehicles, and distributed drone systems.

Other applications of multi-agent AI appear in finance, healthcare, and cybersecurity, where complex workflows often span several data sources, decision points, and specialist functions. The common thread is the same: work is divided across agents because the problem benefits from distinct roles and coordinated execution.

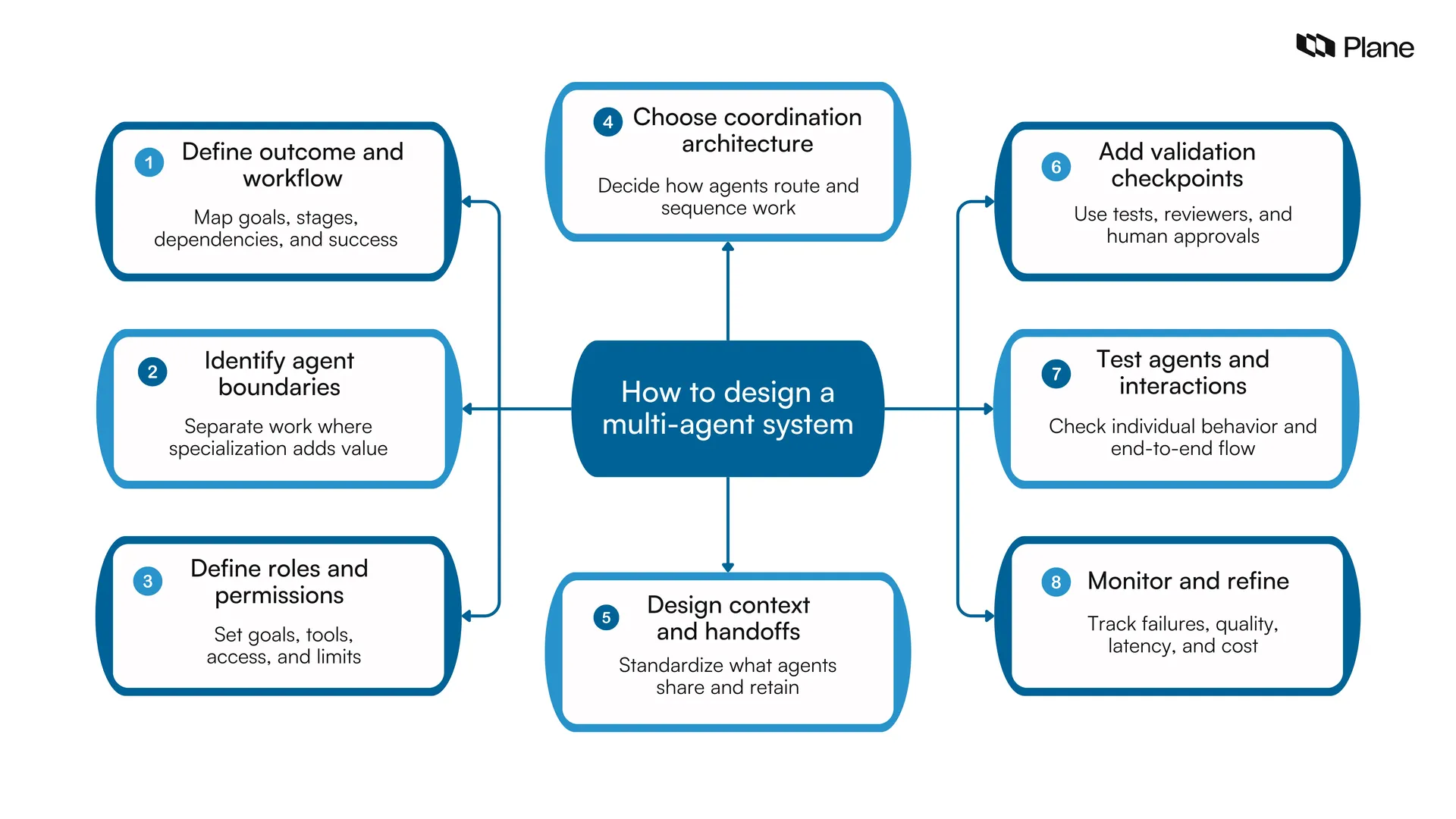

How to design a multi-agent system

A good multi-agent system starts with a clear workflow and explicit boundaries between agents. Before choosing models or frameworks, map the work, decide where separate agents add value, and define how tasks, context, and decisions will move through the system.

1. Define the outcome and map the workflow

Start with a specific result the system needs to produce, then map how the work moves from start to finish.

Define:

• What triggers the workflow
• What the final output should look like
• What information enters the system
• What actions agents can take
• What counts as success
• Where human approval is required

Then identify the major stages, dependencies, parallel tasks, decision points, and common failure points.

For example:

Define question → collect sources → analyze evidence → verify claims → produce summary

Mapping the workflow first makes it easier to see where separate agents are genuinely useful.

2. Decide where separate agents add value

Create a new agent only when there is a clear reason to isolate a responsibility.

Useful boundaries often appear when:

• A task requires distinct expertise
• A different model performs the task better
• Separate tools or permissions are required
• Work can run independently in parallel
• Context needs to remain focused
• Independent review or verification adds value

Closely related work can often remain within one agent when it relies heavily on the same context.

For every proposed agent, ask: What improves by making this a separate responsibility?

3. Define agent roles, capabilities, and permissions

Document what each agent owns and what it is allowed to do.

For every agent, specify:

• Goal
• Inputs
• Expected outputs
• Tools
• Data access
• Model
• Permissions
• Escalation conditions

For example, a testing agent may be allowed to run tests and report failures while remaining unable to modify production code.

Clear boundaries reduce duplicated work, overlapping decisions, and unclear accountability.

4. Choose the coordination architecture

Decide how work will move between agents.

Common patterns include:

• Supervisor-based: One orchestrator routes and tracks work.
• Sequential: One agent hands its output to the next.
• Parallel: Several agents work independently before results are combined.
• Peer-to-peer: Agents communicate directly as needs arise.
• Hierarchical: Higher-level agents delegate to specialist agents.

Many systems combine these patterns.

Also define what happens when an agent succeeds, fails, needs more information, or returns an uncertain result. These routing rules are part of the architecture, not an afterthought.

5. Design context, handoffs, and shared state

Decide what information needs to move between agents and what information should remain local.

A handoff may include:

• Original goal
• Relevant inputs
• Decisions already made
• Previous output
• Constraints
• Current task status
• Validation results

Standardized handoffs make coordination easier to test and debug. A simple structure might be:

Task → context → constraints → expected output → status

Also define a shared source of truth for information used across the workflow, such as completed tasks, approvals, artifacts, open issues, retries, and validation results.

6. Build validation and human checkpoints into the workflow

Define where outputs need to be checked before work continues.

Validation may include:

• Format or schema checks
• Automated tests
• Business rules
• Citation or retrieval checks
• Reviewer agents
• Confidence thresholds
• Human approval

The level of validation should match the risk of the action.

Also define the failure path. Decide whether the system should retry, return work to an earlier agent, use another route, or escalate to a human.

7. Test individual agents and end-to-end interactions

Test each agent on its own responsibilities before connecting the full system.

Cover:

• Expected inputs
• Ambiguous requests
• Missing information
• Tool failures
• Invalid outputs
• Edge cases
• Permission boundaries

Then test the full workflow for interaction failures such as:

• Incorrect routing
• Missing context
• Duplicate work
• Conflicting outputs
• Failed handoffs
• Infinite loops
• Excessive retries
• Agents acting in the wrong order

A reliable individual agent can still participate in an unreliable workflow if the interactions around it are poorly designed.

8. Monitor performance and refine the architecture

Define how you will evaluate the system in production.

Track metrics such as:

• Task completion rate
• Output quality
• Validation failures
• Retry frequency
• Escalation rate
• Handoff failures
• Tool-call failures
• End-to-end latency
• Model and token costs
• Human intervention rate

Use those signals to improve the architecture over time. You may find that two agents should be merged, one responsibility needs to be split, a handoff needs more structure, or a validation step should move earlier in the workflow.

A strong AI multi-agent system evolves around real workflow behavior. Clear responsibilities, predictable interactions, and well-designed handoffs matter as much as the capability of the individual agents.

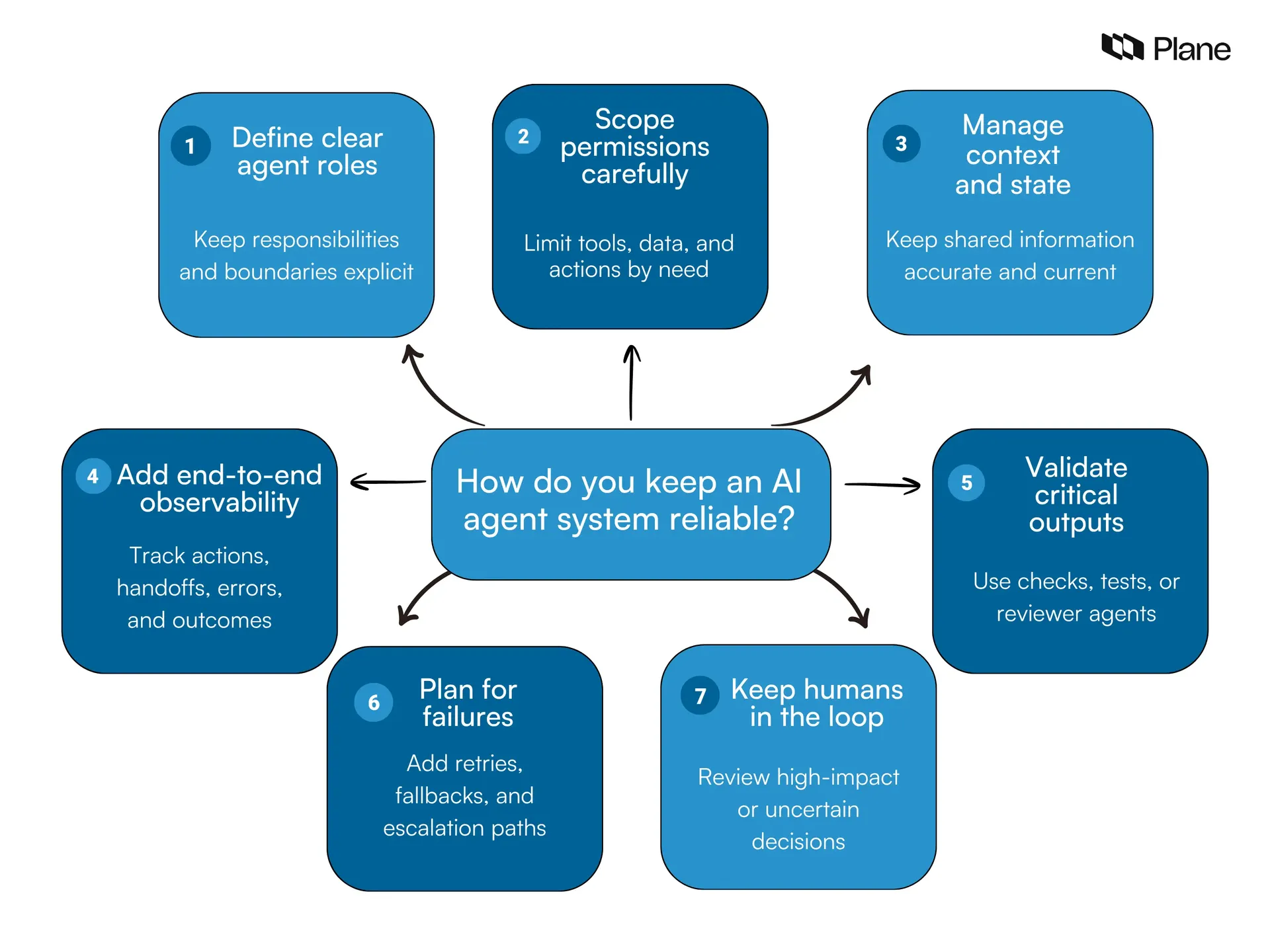

How do you keep multi-agent systems reliable?

Reliability in a multi-agent system depends on how well agents interact, exchange context, recover from failures, and stay within their assigned scope. Strong individual agents help, but coordination is where many system-level failures begin.

1. Define clear roles and boundaries

Give each agent a specific responsibility and make ownership explicit. Overlapping roles can create duplicated work, conflicting actions, and unclear accountability.

2. Scope permissions and tool access

Limit each agent to the tools, data, and actions it actually needs. Narrow permissions reduce the impact of incorrect or unintended behavior.

3. Manage shared state and context carefully

Keep important decisions, task status, and outputs consistent across agents. Poor context management can lead to stale information, repeated work, or incorrect handoffs.

4. Add end-to-end observability

Track individual agent actions as well as the full workflow. Logs, traces, tool calls, handoffs, retries, and final outcomes should make it possible to understand where a failure started and how it propagated.

5. Validate outputs continuously

Use automated checks, evaluation criteria, reviewer agents, or domain-specific tests at important stages. Validation should happen throughout the workflow rather than only at the final output.

6. Plan for retries and failure handling

Define what happens when an agent times out, produces an invalid result, or cannot complete a task. The workflow may retry, route work to another agent, fall back to a safer path, or escalate the issue.

7. Keep humans involved where consequences are high

Human review is valuable for decisions involving significant financial, operational, security, legal, or customer impact. These checkpoints give teams a clear place to approve, reject, or redirect agent actions.

Reliable multi-agent systems in AI come from designing the interactions between agents with the same care as the agents themselves. Communication, permissions, handoffs, and recovery paths all shape how dependable the overall system becomes.

How multi-agent systems change human-AI collaboration

As multi-agent AI becomes more capable, human-AI collaboration starts to look less like a person working with one assistant and more like a team coordinating several specialized agents. One agent may research, another may execute, and another may review the result before the work returns to a human.

Work moves across more participants

The flow increasingly becomes human → agent, agent → agent, and agent → human. That creates familiar coordination needs: clear ownership, dependencies, shared context, handoffs, approval points, and visibility into what has already happened.

For example, a product manager might define the goal, a research agent gathers evidence, a planning agent turns that evidence into a proposal, and a human reviews the final recommendation. Each transition needs enough context for the next participant to understand both the task and the decisions that came before it.

Human responsibility shifts toward direction and oversight

As AI agents take on more execution work, humans can spend more time defining goals, setting constraints, reviewing outcomes, handling exceptions, and making higher-consequence decisions. This changes the operating model around work because teams need to know where human judgment is required and where agents can continue independently.

Coordination becomes part of the work itself

The more agents participate in a workflow, the more important it becomes to track who owns what, how tasks depend on one another, and where approval or intervention is needed. For teams adopting agentic AI, the challenge increasingly extends beyond model capability to the structure around the work: how responsibilities are assigned, how context moves, and how humans stay informed as execution progresses.

Closing thoughts

Multi-agent systems are useful when a problem genuinely benefits from specialization, parallel work, distributed decision-making, or separate context. Their effectiveness depends on how clearly responsibilities are divided and how reliably agents communicate, hand off work, and recover when something goes wrong.

For teams exploring AI multi-agent systems, the strongest designs usually start with the workflow itself. Define the goal, decide where separate agents add real value, and build coordination, observability, permissions, and human oversight around those boundaries.

The aim is better execution through well-designed collaboration between agents and people.

Frequently asked questions

Q1. What are the 7 types of AI agents?

There is no universally accepted list of exactly seven AI agent types. Common classifications include:

1. Simple reflex agents
2. Model-based reflex agents
3. Goal-based agents
4. Utility-based agents
5. Learning agents
6. Hierarchical agents
7. Collaborative or multi-agent configurations

IBM, for example, identifies five core agent types: simple reflex, model-based reflex, goal-based, utility-based, and learning agents. Other taxonomies add categories based on architecture, autonomy, or how agents interact.

Q2. What is another name for agentic AI?

Agentic AI is sometimes described as autonomous AI or autonomous agent systems, although these terms are closely related rather than exact synonyms. Agentic AI refers broadly to AI systems that can pursue goals, make decisions, use tools, and take multi-step actions with some degree of autonomy.

An agentic AI system can contain a single AI agent or several agents working together.

Q3. Is multi-agent the same as agentic AI?

No. A multi-agent system is one type of agentic AI architecture.

Agentic AI is the broader category of AI systems that can reason, make decisions, use tools, and act toward goals. A multi-agent system (MAS) specifically contains multiple autonomous or semi-autonomous agents that communicate or coordinate to complete individual or shared goals.

An agentic AI application can therefore use one agent, several agents, or a combination of agentic and conventional software components.

Q4. What is the difference between an agent swarm and a multi-agent system?

An agent swarm is a decentralized collaboration pattern within the broader category of multi-agent systems.

A multi-agent system can use centralized, hierarchical, sequential, or decentralized coordination. In a swarm, peer agents generally work without a central supervisor, exchange information directly or through shared state, and collectively converge on a result.

In other words, every agent swarm is a multi-agent system, while many multi-agent systems use other coordination architectures.

Q5. What are examples of multi-agent systems?

Examples of multi-agent systems include software-development agent teams, warehouse robots, autonomous vehicle fleets, customer-support workflows, incident-response agents, and supply-chain coordination systems.

For example, a software-development multi-agent system might use a planning agent to break down a feature, a coding agent to implement it, a testing agent to find defects, and a review agent to verify the result. Each agent has a defined responsibility, while communication and coordination connect their work into one workflow.

A multi-agent system can operate entirely in software or include physical autonomous agents such as robots, sensors, drones, or vehicles.
