What is an API integration? How it works

Introduction

Modern products depend on a growing network of services, each responsible for different parts of the workflow. API integration gives those systems a consistent way to exchange data, request functionality, and trigger downstream actions.

If you are trying to understand what API integration is, this guide covers the full picture: how it works, common API integration types, real-world examples, benefits, implementation methods, and best practices for keeping integrations reliable over time.

What is an API integration?

An API integration is a connection between two or more software applications that allows them to exchange data, trigger actions, or support a shared workflow. The connection is built using APIs, which define how one system can request information or functionality from another.

For example, when a new customer is created in a CRM, an API integration can send that customer’s details to a billing platform automatically. The billing platform can then create the corresponding account without anyone copying the information manually.

API integrations can support simple data transfers or more complex workflows involving several systems. A product team might connect a project management tool with source control and communication tools so updates from one system appear where the team is already working.

What is an API?

An API, or application programming interface, is a defined way for software systems to communicate with each other.

Most APIs expose endpoints, which represent specific resources or actions. An application sends a request to an endpoint, such as asking for customer information or creating a new record. The API processes that request and returns a response containing the requested data, a confirmation, or an error.

These rules give developers a predictable way to work with another application without needing access to its internal code.

What is the difference between an API and an API integration?

An API provides the interface that makes communication possible. An API integration is the working connection built using that interface.

A single API can support many different integrations. The same customer API, for instance, could be used by a billing platform, analytics system, support tool, or internal application, depending on what each workflow needs.

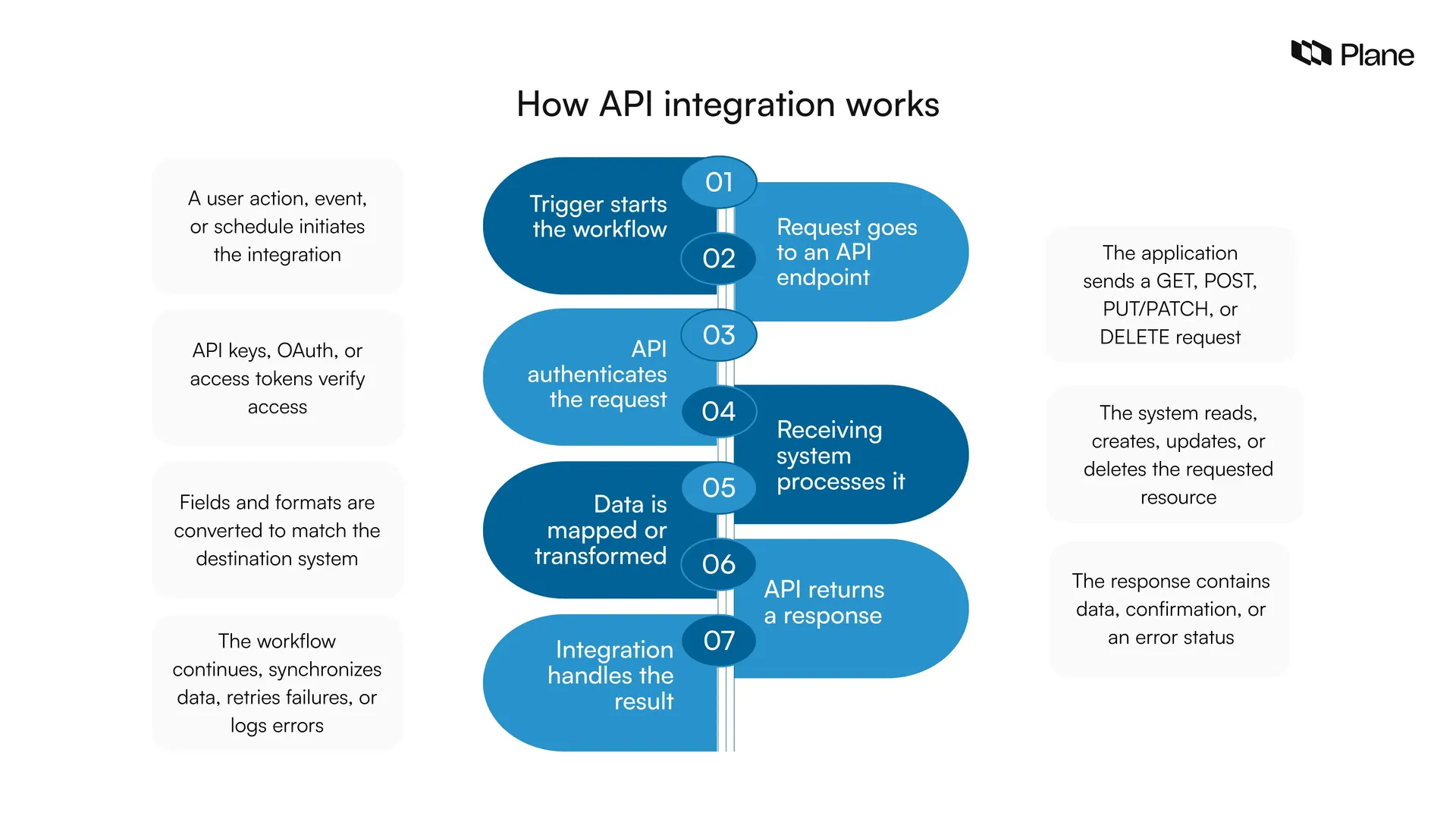

How does API integration work?

At a basic level, API integration follows a request-and-response flow. One system sends a request through an API, the receiving system processes it, and a response comes back. The integration then decides what should happen next based on that response.

In practice, how API integration works depends on the workflow, but the core sequence usually looks like this:

1. An event or application starts a request

Most API integrations begin with a trigger. That trigger could be a user action, a system event, a scheduled job, or another automated workflow.

For example, a customer might submit a signup form, or a work item might move to a new state. That event tells the integration to contact another system.

2. The application sends a request to an API endpoint

The application sends its request to an API endpoint, which is a specific address associated with a resource or action.

The request usually includes an HTTP method that tells the API what the application wants to do:

• GET retrieves data.
• POST creates a new resource.
• PUT or PATCH updates existing data.
• DELETE removes a resource.

For example, an integration could send a POST request to create a new customer record in a CRM.

3. The API authenticates the request

Before processing the request, the API needs to verify who is making it and what that requester is allowed to do.

Common authentication methods include API keys, access tokens, and OAuth. Authentication confirms identity, while authorization determines which data or actions that identity can access.

This step is especially important when an integration can read sensitive information or modify records in another system.

4. The receiving system processes the request

Once the request is authenticated, the receiving application validates it and performs the requested operation.

Depending on the endpoint and method, the system might retrieve a record, create a new one, update existing information, or remove data. It may also apply its own validation rules before accepting the request.

5. Data is mapped or transformed

Connected systems often represent the same information differently. One application might use customer_name, while another expects separate first_name and last_name fields. Dates, IDs, status values, and data formats can also vary.

The integration maps these fields and, where necessary, transforms the data into the structure the receiving system expects. This becomes increasingly important as workflows span multiple applications.

6. The API returns a response

After processing the request, the API sends a response back to the calling application.

The response may contain requested data, details about the resource that was created or updated, or information about why the request failed. APIs commonly use HTTP status codes to communicate the outcome. For example, a 200 or 201 status usually indicates success, while 400 or 500 series codes point to client-side or server-side errors.

7. The integration handles the result

The response determines what the integration does next. It may store returned data, synchronize another system, trigger the next step in a workflow, or simply record that the operation succeeded.

Failures also need defined behavior. A temporary network issue might be retried automatically, while an invalid request may need to be logged for investigation. Reliable API integrations account for both successful requests and the cases where something goes wrong.

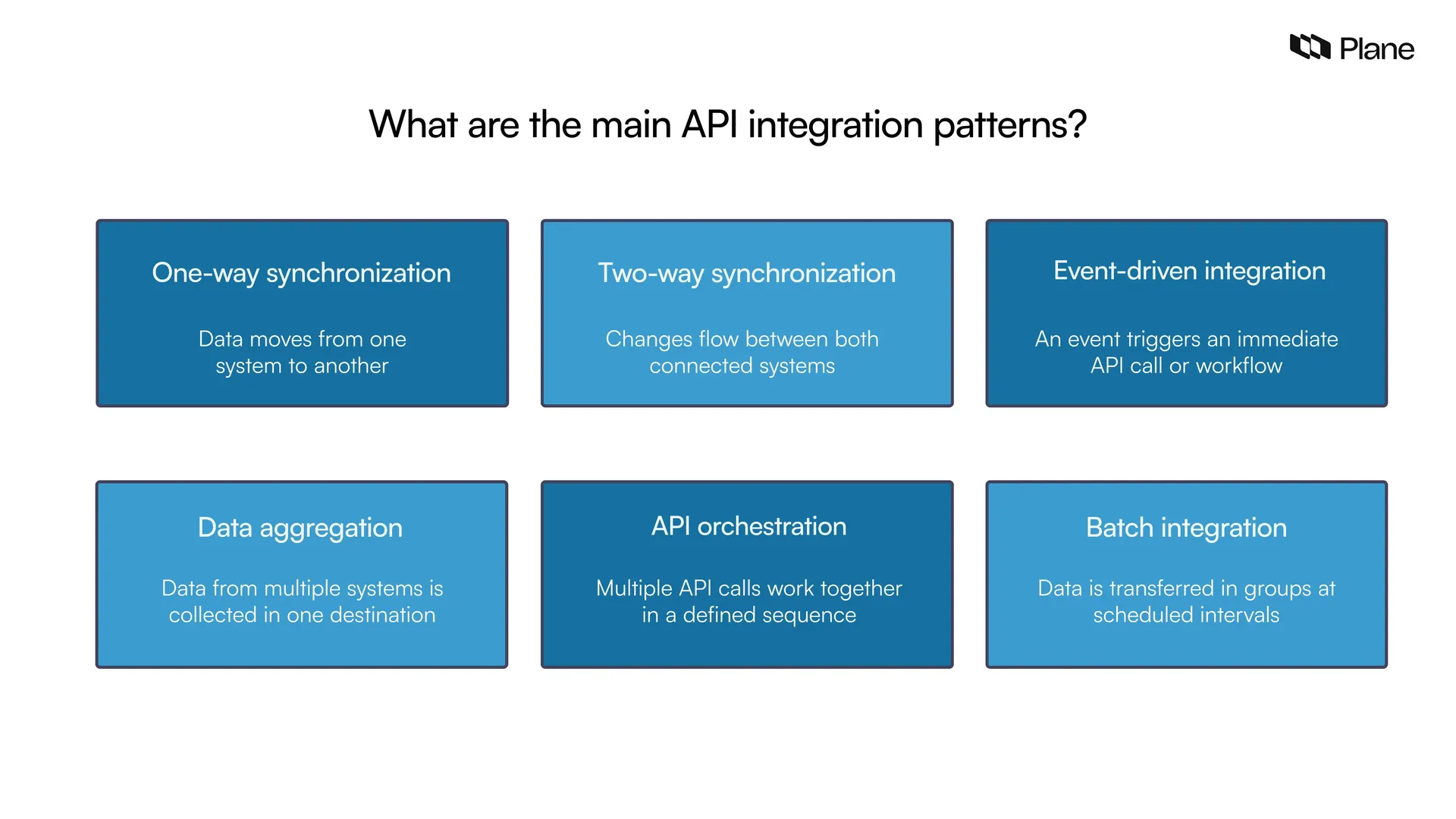

What are the main API integration patterns?

API integration patterns describe how data or actions move between connected systems. They are different from API architectures such as REST or GraphQL, which define how an API itself is designed and accessed.

The right pattern depends on how quickly data needs to move, which system owns the source record, and whether several services need to participate in the same workflow.

1. One-way synchronization

In a one-way sync, data moves from one system to another without changes flowing back to the source.

This works well when one application is the system of record. For example, employee data might move from an HR platform into a payroll system, while all edits continue to happen in the HR platform.

2. Two-way synchronization

Two-way synchronization allows changes in either connected system to be reflected in the other.

A support platform and CRM, for example, might keep customer details synchronized so teams working in either tool see current information. This pattern needs clear rules for field ownership, update timing, and conflict resolution, especially when the same record can change in both systems.

3. Event-driven integration

Event-driven integrations respond when something happens. A new order, updated work item, completed payment, or code change can immediately trigger another action.

Webhooks are commonly used for this pattern. Instead of one application repeatedly checking an API for changes, the source system sends a notification when a relevant event occurs. The receiving application can then call an API or continue the workflow.

4. Data aggregation

Data aggregation brings information from several APIs into one destination.

An analytics dashboard, for instance, might combine revenue data from a billing platform, customer information from a CRM, and product usage data from another system. The destination can then provide a broader view without requiring users to check each source separately.

5. API orchestration

API orchestration coordinates several API calls to complete a larger process. Each step may depend on information returned by the previous one.

Consider an order workflow that checks inventory, authorizes a payment, creates a shipment, and sends a confirmation. Each service handles a different part of the process, while the orchestration layer manages their sequence and dependencies.

6. Batch integration

Batch integration moves data in groups at scheduled intervals, such as every hour, overnight, or once a week.

This approach is useful when immediate synchronization provides little value. Large reporting datasets, historical records, or periodic exports can often be processed more efficiently in batches than through continuous API calls.

These different types of API integrations can also be combined. A workflow might use a webhook to trigger an event, make several orchestrated API calls, and run a nightly batch process to reconcile records across systems.

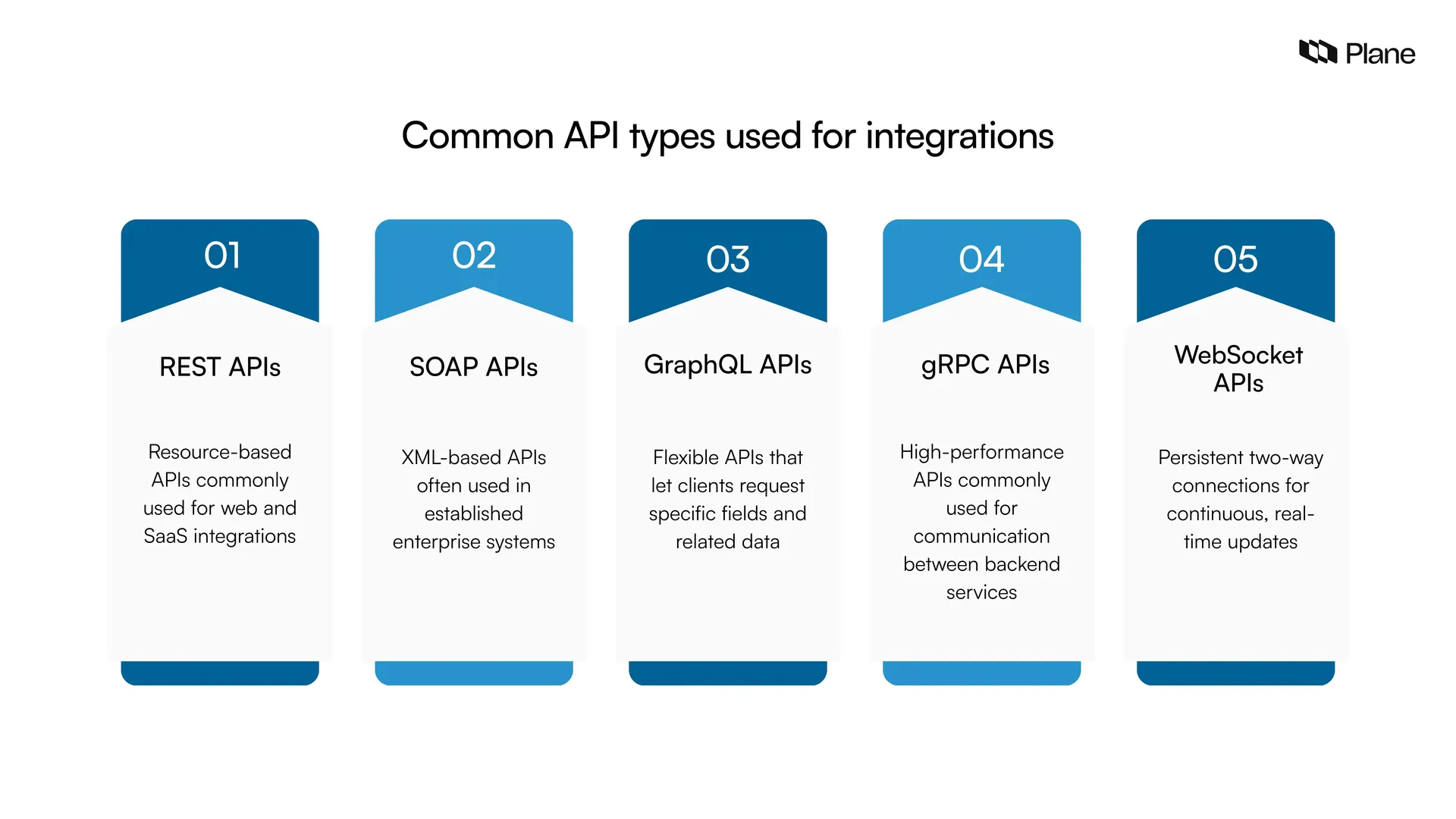

What types of APIs are commonly used for integrations?

The integration pattern describes how data moves between systems. The API type describes the technical approach those systems use to communicate. Different API styles suit different performance, flexibility, and compatibility requirements.

1. REST APIs

REST is one of the most common approaches for web and SaaS integrations. A REST API typically exposes resources through HTTP endpoints and exchanges data in JSON.

A typical REST API integration might retrieve customer records with a GET request, create a new record with POST, or update an existing one with PATCH. REST is widely used because it works well with web technologies and is straightforward to consume across many programming languages and platforms.

2. SOAP APIs

SOAP is a messaging protocol that uses XML and follows a more formal contract-based structure.

It remains common in enterprise systems where strict schemas, standardized messaging, and mature security requirements are important. Financial services, telecommunications, and established business applications may still rely on SOAP APIs, especially when integrations connect to older systems.

3. GraphQL APIs

GraphQL allows clients to specify exactly which fields and related data they need in a request.

This can be useful when applications would otherwise need several API calls or receive more data than required. For example, a client could request a customer’s name, subscription status, and recent orders in a single query if the API schema supports those relationships.

4. gRPC APIs

gRPC uses remote procedure calls to let one service invoke functions provided by another. It commonly uses Protocol Buffers for compact, structured data exchange.

Its performance characteristics make it useful for communication between backend services, particularly in distributed and microservices-based systems where low latency and efficient data transfer matter.

5. WebSocket APIs

WebSockets maintain an open, two-way connection between a client and server. Either side can send data without waiting for a new request to be initiated each time.

They are useful when applications need continuous or near real-time updates, such as collaborative editing, live dashboards, messaging, market data, or operational monitoring.

Teams often work with several API types across the same software environment. Public SaaS integrations may rely heavily on REST, while internal services use gRPC and real-time features use WebSockets. The right choice depends on the systems being connected and the behavior the integration needs to support.

How do you build an API integration?

If you are figuring out how to build an API integration, start with the workflow rather than the technology. The implementation becomes much easier once the systems, data, triggers, and expected outcomes are clear.

1. Define the workflow, systems, and data involved

Start by identifying what the integration needs to accomplish, which applications participate, and what information needs to move between them.

Define the source and destination systems, triggering events, required fields, and which application owns each piece of data. This prevents ambiguity later when multiple systems can update the same record.

2. Review the APIs and documentation

Check what each API supports before designing the integration.

Review available endpoints, request methods, schemas, authentication requirements, rate limits, versioning, and documented error responses. This will show whether the intended workflow is technically possible and reveal any constraints you need to design around.

3. Choose the integration approach and access model

Decide whether the workflow is best handled through custom code, a native connector, an integration platform, or a combination of approaches.

At the same time, determine how the integration will authenticate and what permissions it requires. Credentials and access scopes should be limited to the data and actions the workflow actually needs.

4. Map and transform the data

Define how information from the source system corresponds to fields in the destination.

This may involve renaming fields, converting dates, translating status values, combining fields, or changing data formats. Documenting these mappings makes testing and future maintenance much easier.

5. Build the integration logic

Configure the triggers, API requests, business rules, and sequencing that make up the workflow.

This is also where you define what happens when data is missing, a condition is not met, or one step depends on the result of another API call.

6. Test successful and failure scenarios

Test more than the expected path. Confirm that valid requests produce the correct results, then check what happens with invalid data, expired credentials, duplicate events, rate limits, timeouts, and unavailable services.

Testing these conditions early helps prevent silent failures once the integration is handling real data.

7. Deploy, monitor, and maintain the integration

Move the integration into production using the appropriate environment settings and credentials, then monitor its behavior over time.

Track errors, latency, failed requests, and unusual usage patterns. APIs and business workflows change, so integrations also need periodic updates when endpoints are deprecated, schemas evolve, or requirements change.

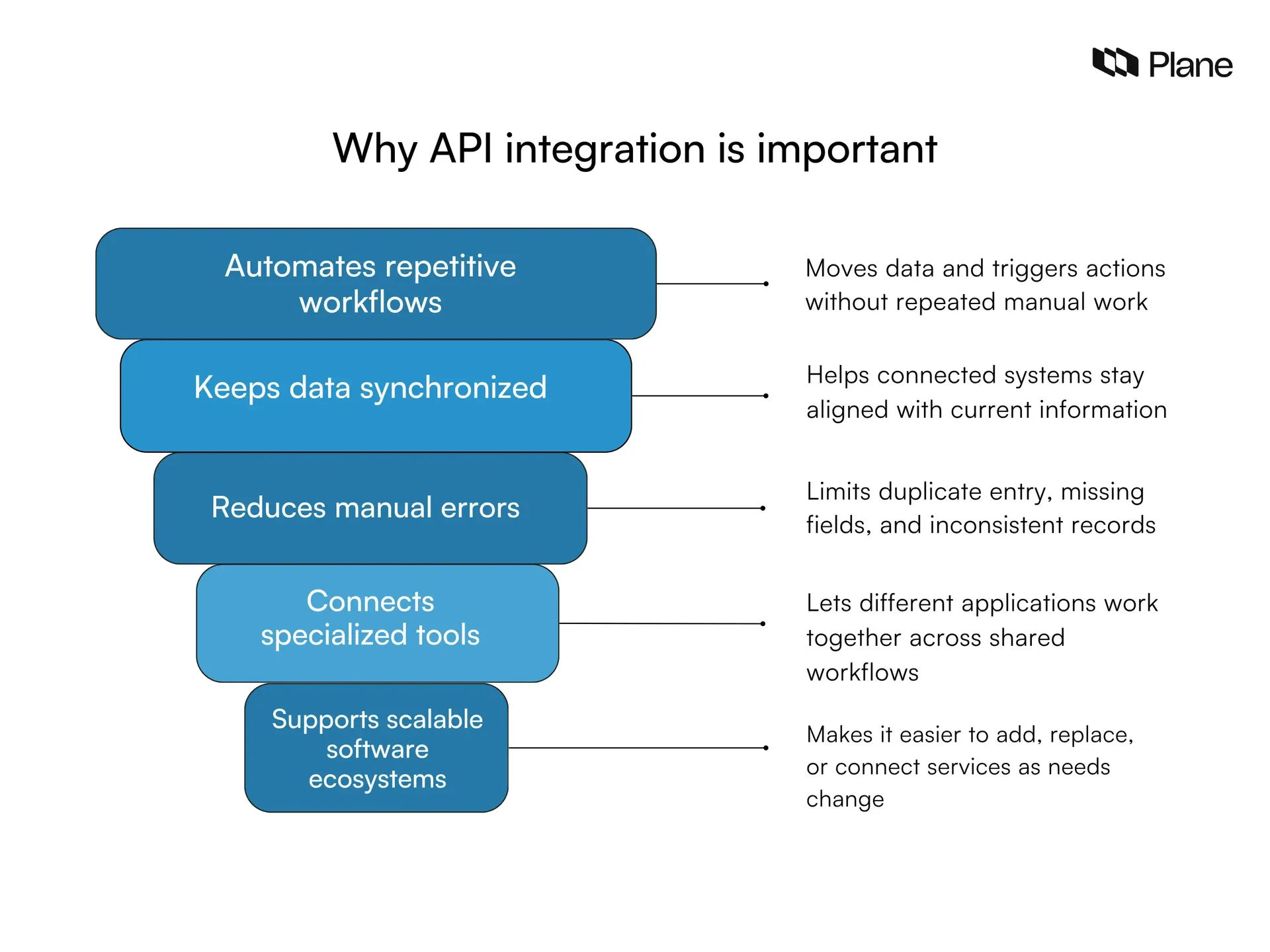

Why is API integration important?

API integration helps separate software systems work together as part of the same operational workflow. For product and engineering teams, that can reduce manual coordination, improve data consistency, and make it easier to add new tools without creating disconnected processes.

1. Automates repetitive workflows

API integrations can move data or trigger actions as soon as a defined event occurs.

For example, when a customer signs up, an integration can create the relevant CRM record, add the account to a billing system, and notify another application without someone repeating those steps manually. This is one of the clearest answers to what are the benefits of API integration: routine handoffs can happen consistently and with far less manual effort.

2. Keeps data synchronized across systems

Teams often rely on the same information across several applications. Customer details may appear in a CRM, billing platform, support system, and analytics tool, while engineering data can span project management, source control, and monitoring systems.

API integrations keep those records aligned by passing updates between applications according to defined rules. This reduces situations where teams make decisions using outdated information.

3. Reduces manual data entry and errors

Copying information between systems takes time and introduces opportunities for missing fields, incorrect values, and duplicate records.

When an integration transfers structured data directly between applications, the same information can be reused throughout a workflow without repeated entry. Validation and mapping rules can also ensure that the receiving system gets data in the format it expects.

4. Connects specialized applications

Companies rarely use one application for every workflow. Engineering teams may rely on source control, project management, incident management, and communication tools, while sales and operations teams use entirely different systems.

API integrations allow each application to remain focused on what it does well while still exchanging the information required by other parts of the business. They also make it possible to add capabilities such as payments, authentication, messaging, analytics, or AI by connecting to services built specifically for those functions.

5. Makes software ecosystems easier to scale

As a product or organization grows, its software stack usually grows with it. New services appear, workflows change, and existing systems may eventually be replaced.

Well-designed API integrations create defined connections between these systems, making it easier to introduce new services or update existing workflows without rebuilding every surrounding application. That flexibility becomes increasingly valuable as more teams and systems depend on shared data.

What are some examples of API integration?

The easiest way to understand API integration is to look at workflows where one application depends on another system to complete an action. These API integration examples show how data and events can move across different software products in practice.

1. Payment processing

When a customer places an order, an e-commerce application can send the payment details to a payment provider through an API. The provider processes the transaction and returns a response indicating whether the payment succeeded, failed, or requires further action.

The e-commerce system can then confirm the order, update its status, or ask the customer to try another payment method based on that response.

2. Authentication and single sign-on

Applications often use identity providers to handle authentication instead of managing every login flow independently.

When a user signs in through single sign-on, the application communicates with the identity provider to verify the user and confirm what they are allowed to access. The result is then returned to the application so the user can enter the appropriate workspace or account.

3. Project management and development workflows

Product and engineering teams often work across project management, source control, communication, and monitoring tools. API integrations can connect these systems so activity in one place adds useful context somewhere else.

For example, a code change in a source control platform could be linked to the relevant work item in a project management system. A monitoring tool could also create or update work when an incident occurs, while communication tools surface project updates to the people following them.

These API integration examples in business share the same underlying idea: one system exposes data or functionality through an API, and another system uses it to continue a broader workflow.

What are the different ways to build an API integration?

There is no single implementation model for every integration. Teams usually choose between custom development, vendor-provided connectors, integration platforms, or developer tooling based on workflow complexity, control requirements, engineering capacity, and the systems involved.

1. Custom-coded integrations

A custom integration is built directly against the APIs of the applications being connected. Engineers define the authentication, data mapping, business logic, error handling, and monitoring themselves.

This approach gives teams the most control over how the integration behaves and is useful when workflows are highly specific or require logic that pre-built options cannot support. The trade-off is ownership. Custom integrations need to be developed, tested, secured, monitored, and updated as APIs or internal requirements change.

2. Native integrations and pre-built connectors

Many software products provide integrations for commonly used applications. These connectors usually handle much of the API configuration behind the scenes and expose a set of supported triggers, actions, or synchronization options.

They work well for established workflows where the available connector already covers the required behavior. Teams can get started quickly, although customization may be limited to the options the vendor supports.

3. Integration platforms and iPaaS

Integration platforms, often called integration platform as a service or iPaaS, provide a central environment for connecting applications and managing workflows across them.

Depending on the platform, these API integration tools may include pre-built connectors, visual workflow builders, data transformation, authentication management, monitoring, retries, and governance controls. They are particularly useful when an organization needs to maintain many integrations across different teams and systems.

4. SDKs and developer tools

SDKs, client libraries, API clients, testing tools, and frameworks can reduce the amount of low-level work involved in building an integration.

An SDK might provide ready-made methods for authentication and API requests, while testing tools can help developers inspect responses, validate endpoints, and troubleshoot failures before deployment. These tools do not replace the integration itself, but they can make development faster and more consistent.

What are common API integration challenges?

Even well-designed API integrations can become unreliable if teams do not account for differences between systems, usage limits, failures, and changing APIs.

1. Authentication, permissions, and security: Integrations need secure handling of API keys, OAuth tokens, credentials, and access scopes. Expired tokens, incorrect permissions, or overly broad access can interrupt workflows or expose sensitive data.
2. Rate limits and throttling: Many APIs restrict how many requests a client can make within a given period. Integrations that exceed those limits may be delayed or rejected, so teams need appropriate batching, caching, and retry behavior.
3. Different data formats and schemas: Connected applications may represent the same information using different field names, formats, IDs, or status values. Reliable integrations need clear mapping and transformation rules to keep data consistent across systems.
4. Failures and API changes: Network issues, invalid requests, service outages, deprecated endpoints, and schema changes can all disrupt an integration. Error handling, retries, monitoring, and version-aware maintenance help teams detect and address these problems before they affect larger workflows.

API integration best practices

A reliable integration depends as much on how it is maintained as on how it is built. These practices help reduce failures and make integrations easier to operate over time.

1. Work from current API documentation: Confirm supported endpoints, schemas, authentication methods, rate limits, and API versions before implementation. Keep track of deprecations so integrations can be updated before older endpoints or versions are retired.
2. Use secure authentication and limited permissions: Store credentials securely and give each integration only the access it needs. Restricting permissions reduces the impact of compromised credentials and makes access easier to review.
3. Design for failures and usage limits: Account for timeouts, temporary service outages, rate limits, and partial failures. Use retries, backoff, batching, caching, or throttling where appropriate so short-lived problems do not disrupt the entire workflow.
4. Test and monitor integrations continuously: Test successful requests, malformed data, authentication failures, and other edge cases before deployment. After launch, monitor errors, latency, and request behavior so problems can be detected before they affect dependent workflows.

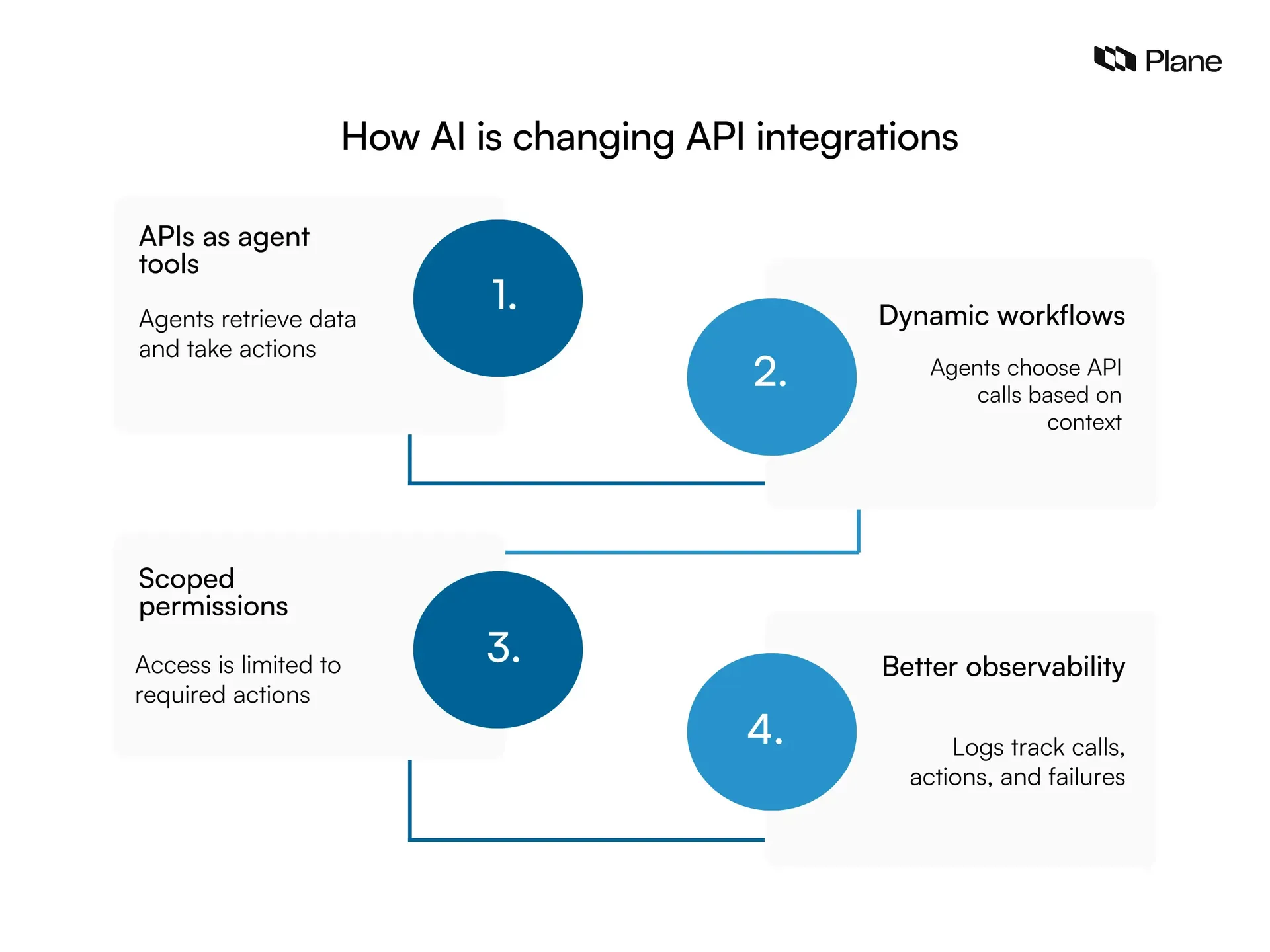

How are API integrations evolving with AI and agentic workflows?

AI applications and agents are expanding the role APIs play in software workflows. Instead of following one fixed sequence, an agent can choose which API or tool to call based on the task and the result of previous actions.

1. APIs act as tools for agents: Agents can use APIs to retrieve project data, create records, update workflows, query internal services, or trigger actions in external systems.
2. Workflows can become more dynamic: A single task may involve several API calls across different applications, with later actions depending on earlier responses.
3. Permissions need tighter control: Agents that can take actions should receive only the access required for their role, with clear scopes and approval boundaries.
4. Observability becomes more important: Logs, traces, and execution history help teams understand which APIs were called, what actions were taken, and where a workflow failed.

As agentic workflows become more common, APIs will continue to provide the structured connections that let AI systems interact with software safely and predictably.

Final thoughts

API integration gives software systems a reliable way to exchange data, trigger actions, and support workflows that span multiple tools. The technical approach can vary, but the core requirements stay consistent: clear data ownership, secure access, dependable error handling, and ongoing monitoring.

For product and engineering teams, well-designed API integrations reduce manual handoffs and help different systems work together without adding unnecessary process overhead. As software stacks become more connected and AI-driven workflows become more common, APIs will remain a foundational layer for moving information and actions between applications.

Frequently asked questions

Q1. What is the full form of API?

API stands for Application Programming Interface. An API is a defined set of rules that allows one software application to request data or functionality from another application. APIs are commonly used to connect services, automate workflows, and exchange data between systems.

Q2. What are the 5 stages of API integration?

There is no universal five-stage standard for API integration, but most integrations follow five practical stages:

1. Define the workflow: Identify the systems, data, and outcome the integration needs to support.
2. Review the APIs: Check endpoints, authentication, schemas, rate limits, and documentation.
3. Configure and build: Set up access, map data, and create the integration logic.
4. Test the integration: Validate successful requests, errors, permissions, and edge cases.
5. Deploy and monitor: Move the integration to production and track failures, performance, and API changes.

These stages cover the typical lifecycle from planning through ongoing maintenance.

Q3. What are the types of API integration?

Common types of API integration include one-way synchronization, two-way synchronization, event-driven integration, batch integration, data aggregation, and API orchestration.

One-way and two-way integrations synchronize data between systems, while event-driven integrations respond to events as they happen. Batch integrations move data on a schedule, aggregation combines data from multiple sources, and orchestration coordinates several API calls within one workflow.

Q4. What are the 5 API methods?

Five commonly used HTTP methods in APIs are:

• GET: Retrieves data from a server.
• POST: Creates a new resource or submits data.
• PUT: Replaces or updates an existing resource.
• PATCH: Updates specific fields in an existing resource.
• DELETE: Removes a resource.

REST APIs commonly use these methods to tell the receiving system what action should be performed on a resource.

Q5. What are some examples of APIs?

Common API examples include payment APIs that process transactions, mapping APIs that provide location data, authentication APIs that support sign-in and single sign-on, and project management APIs that create or update work programmatically.

For example, an e-commerce application might use a payment API to process an order, while a development tool could use a project management API to update a work item after a code change.
